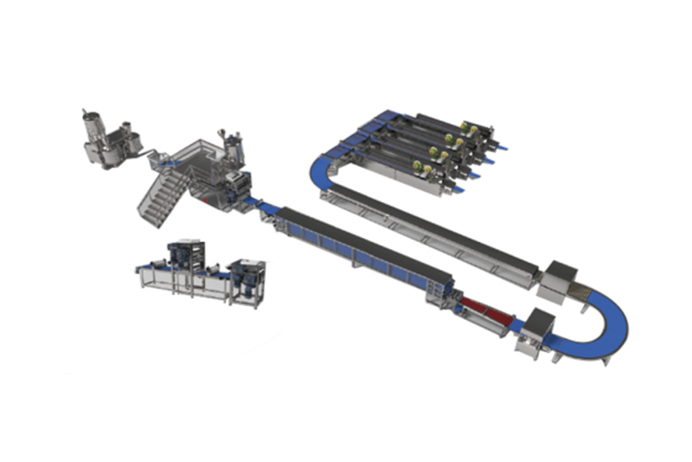

Snickers Production Line, Nougat Production Line, Grain Bar Production Line

Project/Model

JYT-750

JYT-800

Production capacity (kg/h)

300-500kg/h

600-800kg/h

Number of cuts (times/min)

500-100

Product Specifications(mm)

L:15-200mm

W：15-150mm

H：8mm-20mm

Belt width before shunting( mm)

400mm

550mm

Belt width before shunting( mm)

600mm

1000mm

Equipped with coating machine belt width (mm)

800mm

1200mm

Line size(mm)

29000x3000x4200

29000x3500x4200

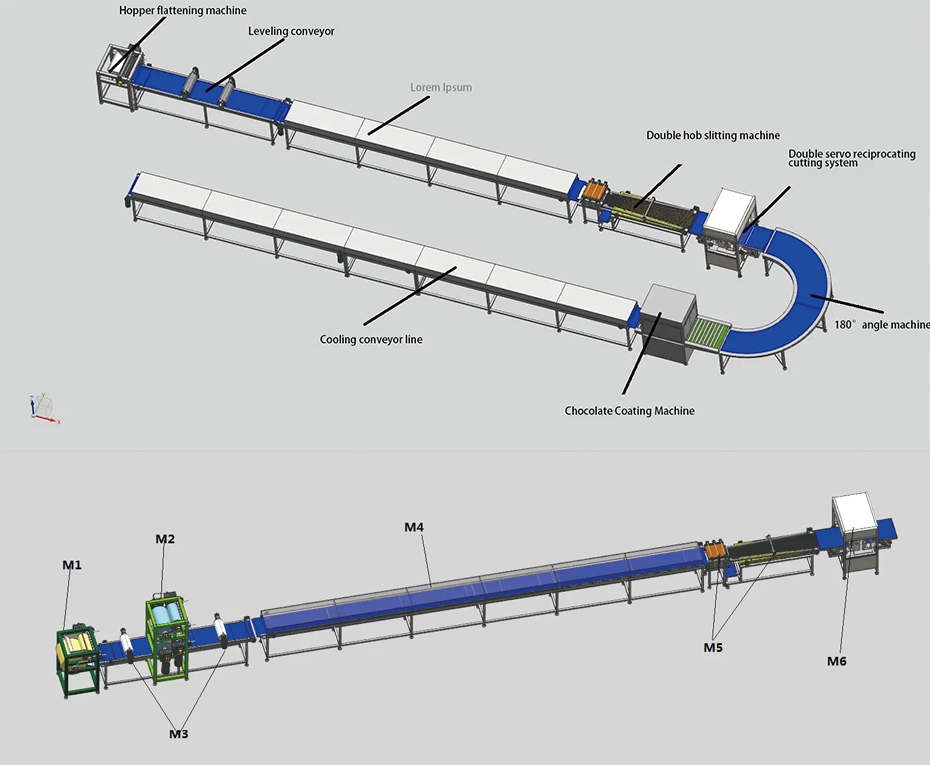

Disposition

-1

Nougat sugar blender

-2

Thermal insulation storage, feeding mixer

-3

Erection

-4

Toffee boiled sugar pot

-5

Double roller ice water flattening machine

-6

Four roller ice water flattening machine

-7

Leveling machine

-8

Conveyor belt

-9

Ice water cooling conveyor

-10

Double hob strip opener

-11

High and low belt split conveyor

-12

Double servo reciprocating cutter

-13

180° turning machine

-14

Chocolate coating machine
