Use

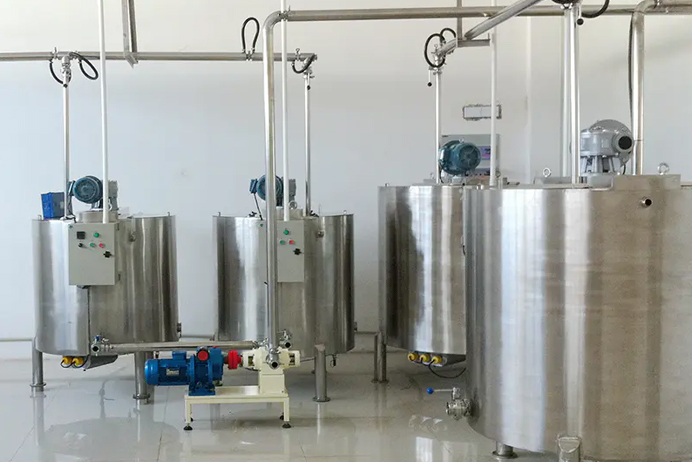

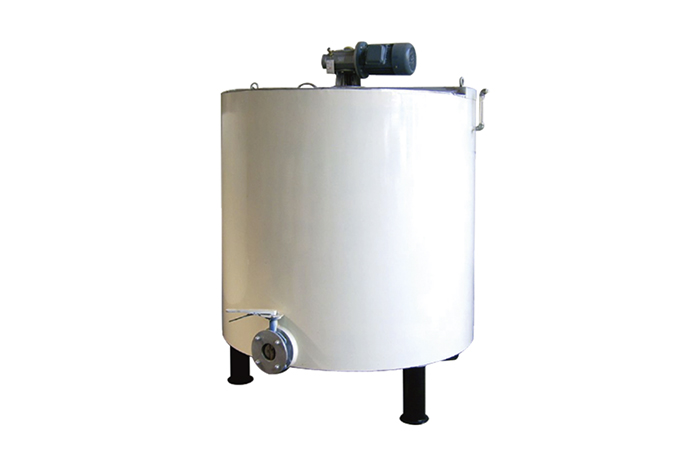

QBJ series holding cylinder is a storage container for finely ground chocolate slurry with automatic temperature control at rated temperature. Select the following equipment according to the matching or actual needs of the fine mill.
Technical parameters
|
Project/Model |
30L |
100L |
300L |
500L |
1000L |
2000L |
1500-5000L |
|
Capacity (liters) |
30 |
100 |
300 |
500 |
1000 |
2000 |
1500-5000 |
|
Spindle speed (r/min) |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
|
Main motor power (KW) |
0.37 |
0.75 |
0.75 |
1.1 |
1.5 |
2.2 |
2.2-5 |
|
Electric heating power (KW)
|
1 |
2.5 |
5 |
5 |
7.5 |
7.5 |
7.5-15 |
|
Insulation power (KW) |
1 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5-5 |
|
Weight (KG) |
60 |
200 |
290 |
515 |
785 |
1500 |
1010-3000 |
|
Dimensions (MM) |
500x600 |
750x700 |
850x1060 |
1035x1480 |
1250x1700 |
1480x1840 |
1400x1600-2000x2500 |
