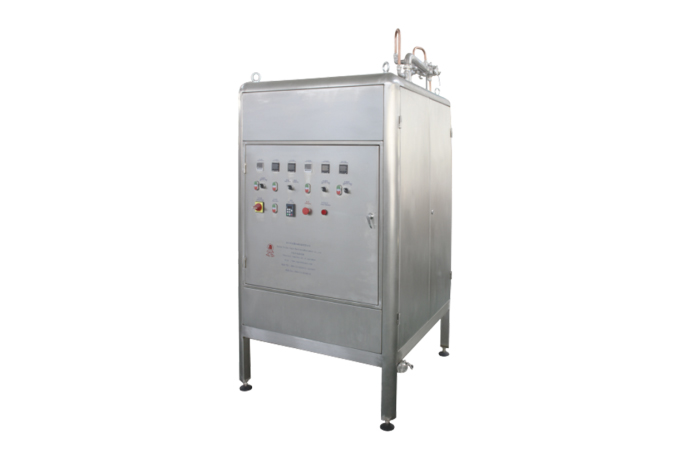

QTJ Continuous Chocolate Thermostat

Category：QTJ continuous chocolate thermostat
Number of Views：17次
Release Date：2022/9/7 8:33:01

I want to make an inquiry

Product Overview

Use

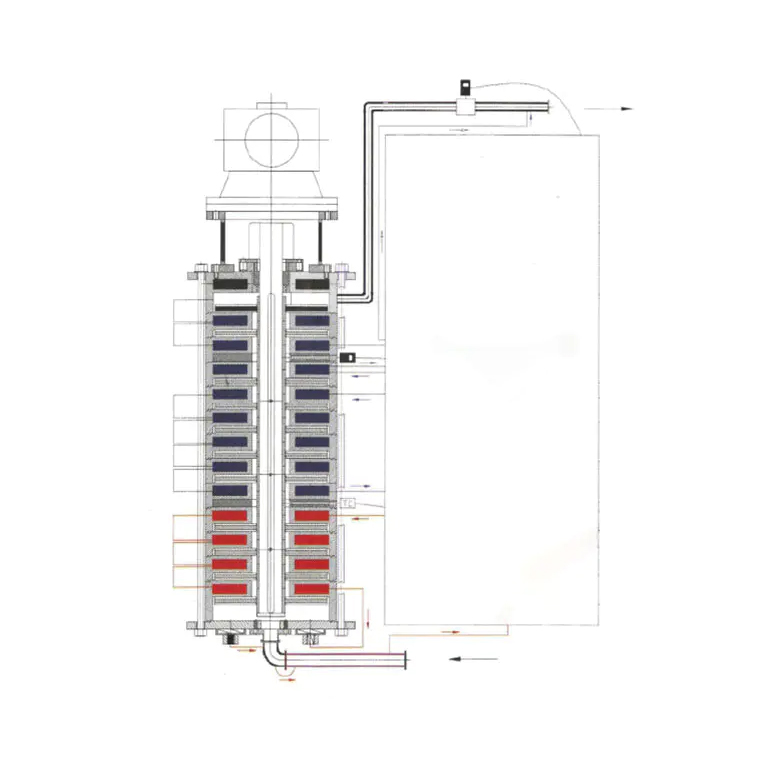

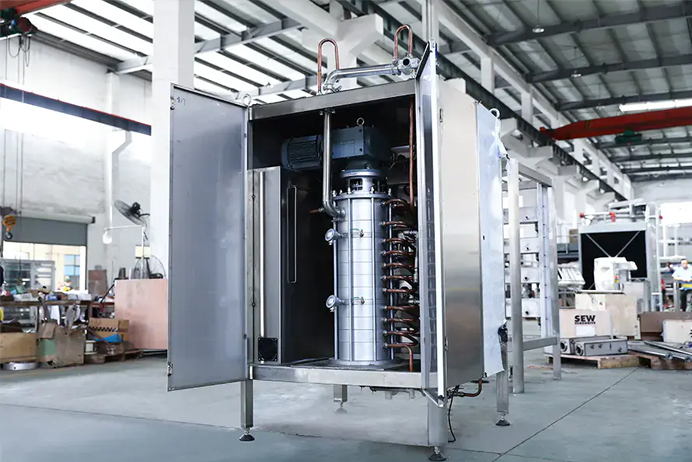

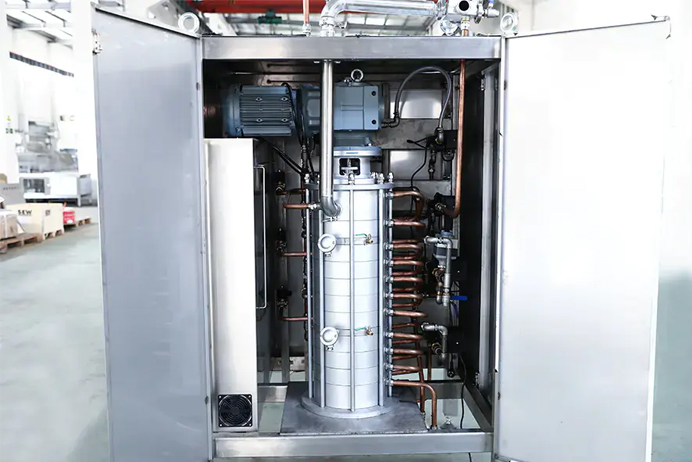

This machine is designed according to natural cocoa butter, cocoa butter tempering type oil characteristics (CBE) dedicated to natural chocolate production equipment, using vertical structure, chocolate slurry input from the bottom of the temperature control host by the pulp pump, through four temperature regulation areas and insulation area to achieve five-stage continuous temperature regulation, so that the temperature curve of chocolate slurry meets the process requirements, to ensure that the chocolate product crystallization is good, the taste is lubricated, bright and flawless, and the preservation performance is good.
Technical parameters

Project/Model	250	500
Production capacity (kg/time)	≥250	≥500
Main engine power (KW)	2.2	4
Electric heater (KW)	5x4	5x4
Total weight (KG)	650	950
Dimensions (MM)	950x850x1600	1000x1200x1800
